| Type of surge | Surge | EFT | |||
|---|---|---|---|---|---|
| Application | SHC | SHN | SHV | MLC | MLA |
| Standard | IEC61000-4-5 | IEC61000-4-4 | |||

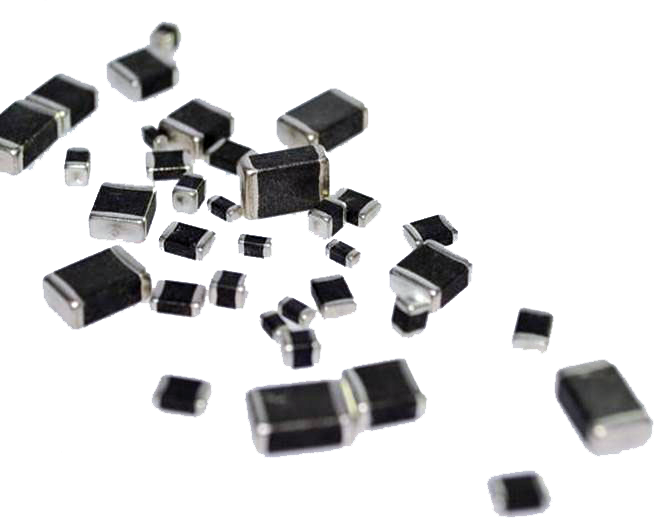

SFI has developed the SHC series of multi-functional overvoltage protectors for communication base stations. SHC itself has a highly non-linear curve. At the same time, SHC provides "ultra-small size SMD chip" packaging. The extremely small size can suppress a large current up to 20KA and has "excellent high temperature characteristics". Compared with the MOV currently used in the market For the "disadvantage" of "easy to deteriorate", SHC is the best choice for overvoltage components used in communication base stations.
1.SMD package (0805~4032).
2.Specially designed for low-voltage related electronic controllers.
3.Low suppression voltage.
4.Extremely low leakage current (<10μA).
5.The response speed is faster than the plug-in MOV (<1ns).
6.High non-linear index α Reaching (above 25).
7.Passed IEC61000-4-5 testing.
8.Good impact ability exceeding 10 times.
9.Compliant with RoHS requirements and lead-free tin furnace.
10.Non polar bidirectional action.
11.Extremely wide operating temperature -55°C
to +125°C.
12.Avoiding the issue of TVS high-temperature performance degradation.
13.Space saving and competitive advantage.
1.Large size of plug-in packaging (5 Å~14 Å).
2.High suppression voltage.
3.Large leakage current (<50μA).
4.Slow reaction speed (>100ns).
5.Severe deterioration phenomenon.
6.Failure modes may lead to combustion phenomena.
1.SMD package has insufficient flow rate (1200A).
2.The suppression voltage is higher than SHC.
3.Less resistant to continuous impact.
4.Not resistant to high temperature environment 125℃.
